Titel: Trägerchassis
Rheological calculation

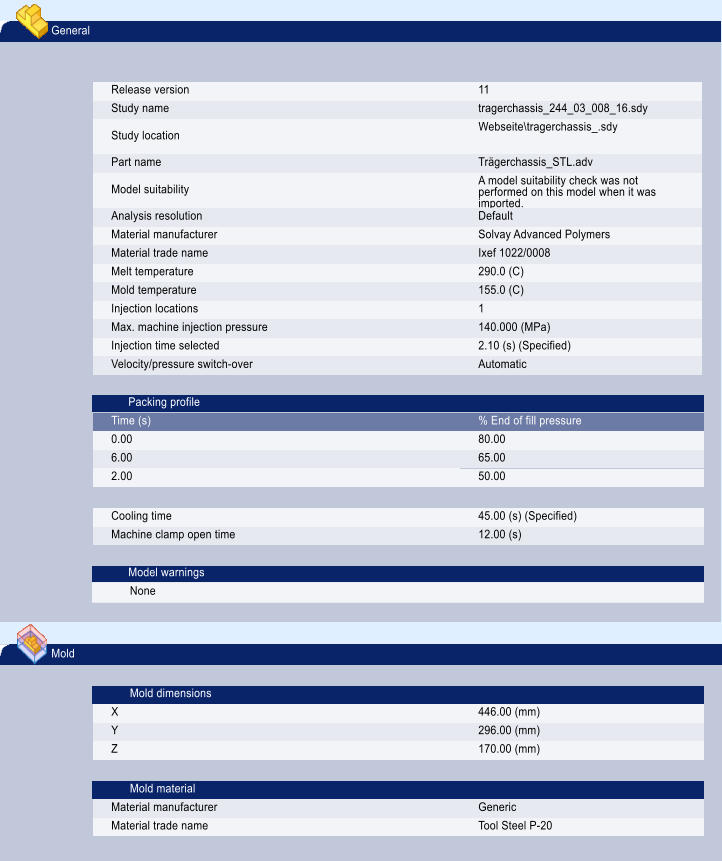

General Release version 11 Study name tragerchassis_244_03_008_16.sdy Study location Webseite\tragerchassis_.sdy Part name Trägerchassis_STL.adv Model suitability A model suitability check was not performed on this model when it was imported. Analysis resolution Default Material manufacturer Solvay Advanced Polymers Material trade name Ixef 1022/0008 Melt temperature 290.0 (C) Mold temperature 155.0 (C) Injection locations 1 Max. machine injection pressure 140.000 (MPa) Injection time selected 2.10 (s) (Specified) Velocity/pressure switch-over Automatic Packing profile Time (s) % End of fill pressure 0.00 80.00 6.00 65.00 2.00 50.00 Cooling time 45.00 (s) (Specified) Machine clamp open time 12.00 (s) Model warnings None Mold Mold dimensions X 446.00 (mm) Y 296.00 (mm) Z 170.00 (mm) Mold material Material manufacturer Generic Material trade name Tool Steel P-20
Results summery
