Structural mechanical Solution

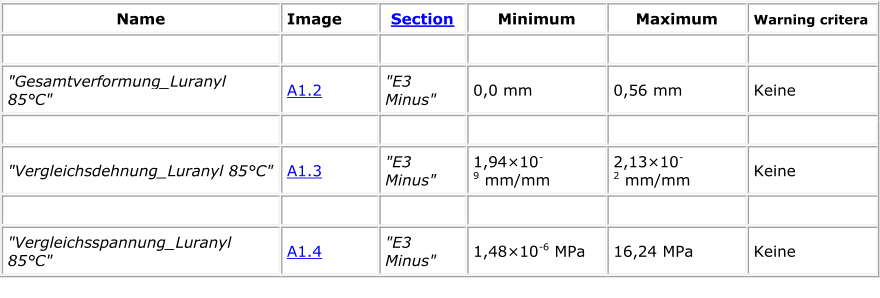

Name Image Section Minimum Maximum Warning critera "Gesamtverformung_Luranyl 85°C" A1.2 "E3 Minus" 0,0 mm 0,56 mm Keine "Vergleichsdehnung_Luranyl 85°C" A1.3 "E3 Minus" 1,94×10 - 9 mm/mm 2,13×10 - 2 mm/mm Keine "Vergleichsspannung_Luranyl 85°C" A1.4 "E3 Minus" 1,48×10 - 6 MPa 16,24 MPa Keine
" Solution " contains the calculated answer for "E3 Minus" with the load conditions specified here: " Environment Luranyl 85°C" . According to the setting the program should choose the Solver used in this solution. 3.3.1. Structural mechanical results Chart 3.3.1.1. Data
N ame
Mat erial
K n o t s
Element s
"E3   Minus_d"
"Ultr adur S 40 90  G2"
6 48 39
3 23 43
4. Sc enario 2 4.1. "E3 Minus 2" "E3 Minus 2" contains g eometr y of Assembly/ Component Parasolid ® " E3_minus_d.x_t " .  The model’s Frame measures 279,03 times 28,93 times 101,14 mm along the global X - , Y - und Z - axis.  The model’s gross weight is 0.12 kg. Chart 4.1.1. Components
