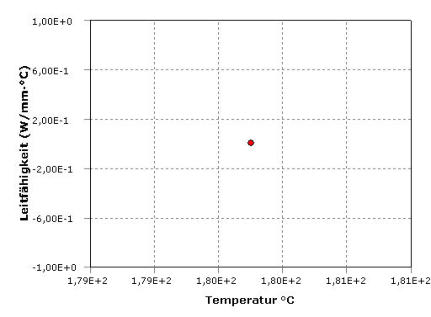

Chart  A 4.1.
Thermal conductivity in relation to temperature
De fi ni tio n of  "Ul tr adur S4090  G 2"
Name Typ Data Independent of Temp. 2.000,0 MPa Poisson’s Ratio Independent of Temp. 0,4 Mass Density Independent of Temp. 1,31×10 - 6 kg/mm³ Thermal Volume Expansion Coefficient Independent of Temp. 6,69×10 - 5 1/°C Thermal Conductivity Independent of Temp. 2,6×10 - 4 W/mm·°C Chart A5.2. "Ultradur S4090 G2" Tension Limits Name Typ Data Tensile Yield Strength - Independent of Temp. 40,0 MPa Max. Tensile Strength Independent of Temp. 75,0 MPa Compression Yield Strength - Independent of Temp. 0,0 MPa Max. Compression Strength Independent of Temp. 0,0 MPa Material datei: Ultradur S4090 G2 Eigen erstellt.xml Chart A5.1. "Ultradur S4090 G2" specifics Elasticity
